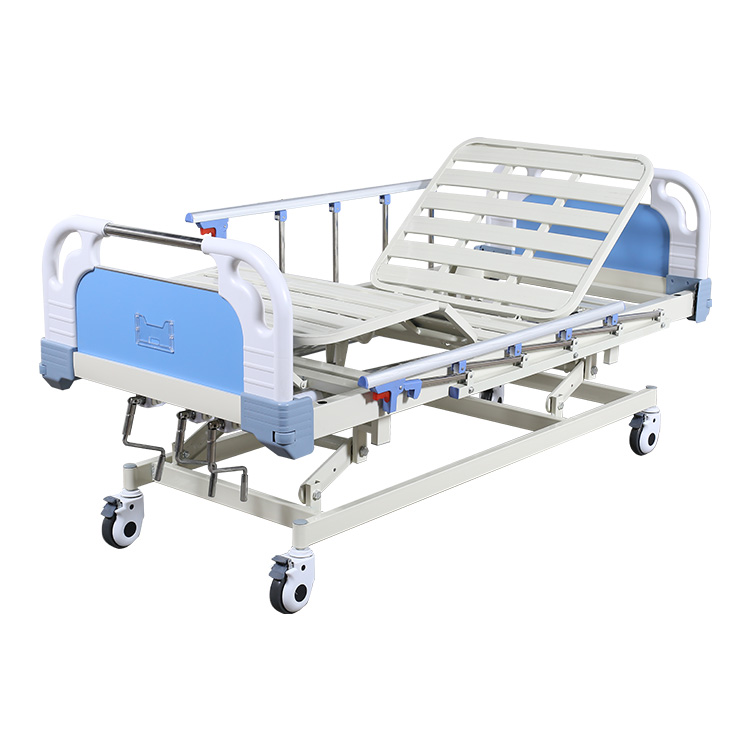

The Practicality of the Hand Crank 3 Function Hospital Bed CZ3-B1
For hospital procurement managers and medical equipment distributors, the challenge is always to find equipment that is reliable, functional, and cost-effective. You need solutions that enhance patient care without straining budgets. In many healthcare environments, a robust and easy-to-use manual hospital bed is a far more practical choice than its complex electric counterparts. This is where the Hebei Chenzhao CZ3-B1 excels, offering essential functions with unmatched durability.
As a dedicated Hospital Bed Manufacturer, we understand that not every situation requires a fully motorized bed. The CZ3-B1 is a workhorse, a 3 crank hospital bed designed for longevity and ease of use. Its manual crank system is incredibly reliable, ensuring functionality even during power outages and reducing maintenance needs. This beds are a smart investment for new facilities and an essential upgrade for existing ones looking to improve patient comfort and caregiver efficiency.
Core Functions for Enhanced Patient Care
The “3 function” in its name refers to the three primary adjustments that are critical for patient comfort and recovery, all controlled by smooth hand cranks:
- Back Rest Adjustment: Easily elevate a patient’s back to a comfortable sitting position (0-70°), which is vital for breathing, eating, and interacting with visitors.
- Leg Lifting: Raise the patient’s legs (0-35°) to improve circulation and relieve pressure, a key factor in preventing complications.
- Height Adjustment: The entire bed platform can be raised or lowered by 200mm. This makes it safer for patients to get in and out of bed and helps caregivers work at an ergonomic height, reducing the risk of back injury.
These core features make the CZ3-B1 an excellent choice for general wards, long-term care facilities, and large-scale nursing homes. For those looking for a broader selection, we offer a complete range of Hospital Beds to meet any requirement.
Built for the Demands of a Healthcare Environment
We know that medical furniture must withstand constant use and rigorous cleaning protocols. The CZ3-B1 is built with a heavy-duty steel frame and a composite headboard hospital bed made from durable, blow-molded ABS. This material is not only tough but also easy to sanitize, helping to maintain a hygienic environment. We also offer extensive Hospital Beds OEM services, allowing for customization to meet your specific needs.
Every component is chosen for its strength and performance, ensuring a long service life and a great return on investment.
Product Specifications: CZ3-B1
For your detailed review and comparison, here are the technical specifications for the Hand Crank 3 Function Hospital Bed.
| Specification | Details |
| Product Code | CZ3-B1 |
| Functions | 3 Cranks (Manual) |
| Back Rest Angle | 0-70° ±5° |
| Leg Lifting Angle | 0-35° ±5° |
| Height Adjustment | 200mm (Total Range) |
| Dimensions | L2170 X W960 X H420-620mm |
| Load Capacity | Within 150 kgs |
| Bed Board | Cold steel board with punching hole (or solid). Thickness: 1.0/1.2mm. |

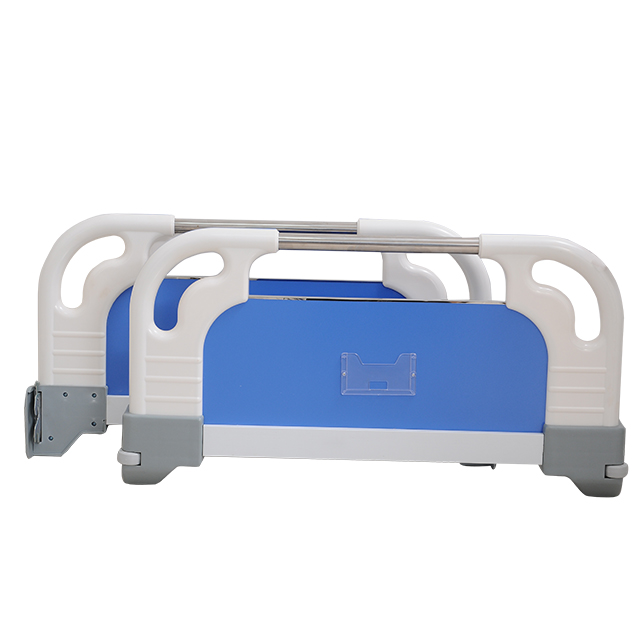

| Head & Foot Board
| ABS, blowing craftwork |
| Frame & Legs | Bed Frame: 40x80mm, Leg: 40x40mm. Thickness options: 1.0/1.2/1.5mm. |

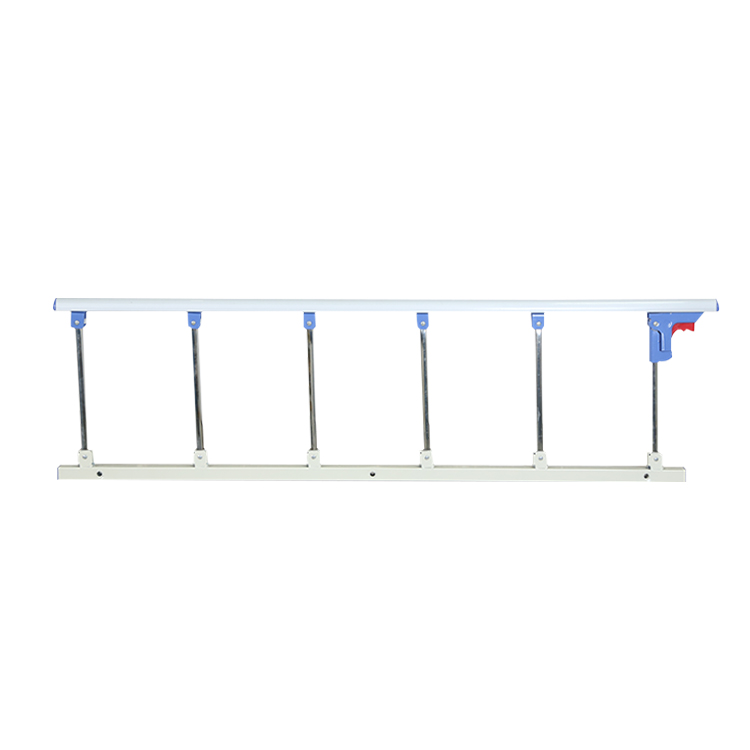

| Optional Side Rails
| Cold steel tube craftwork or button-operated; various material combinations available. |
| Optional Castors

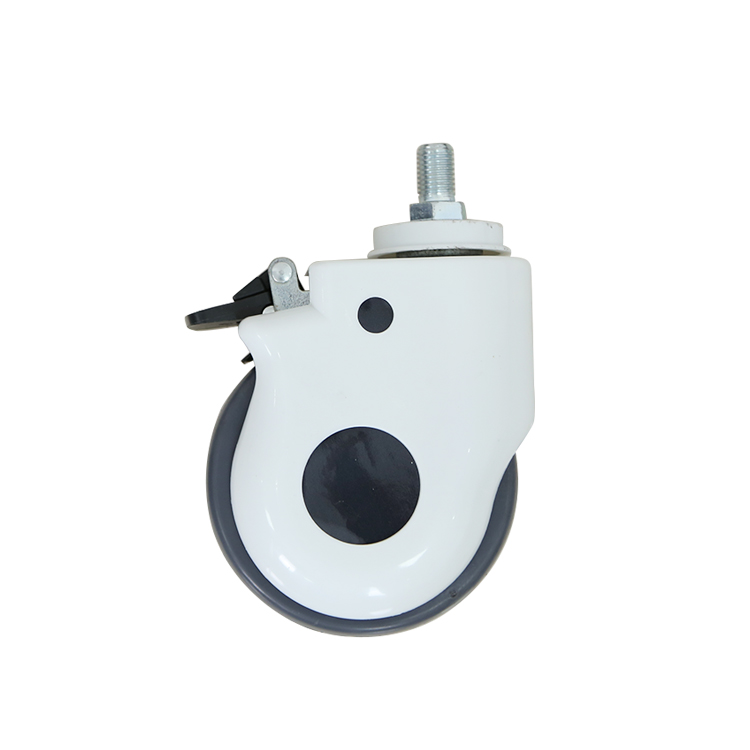

| 5” (125mm) castors, each with an independent brake. |

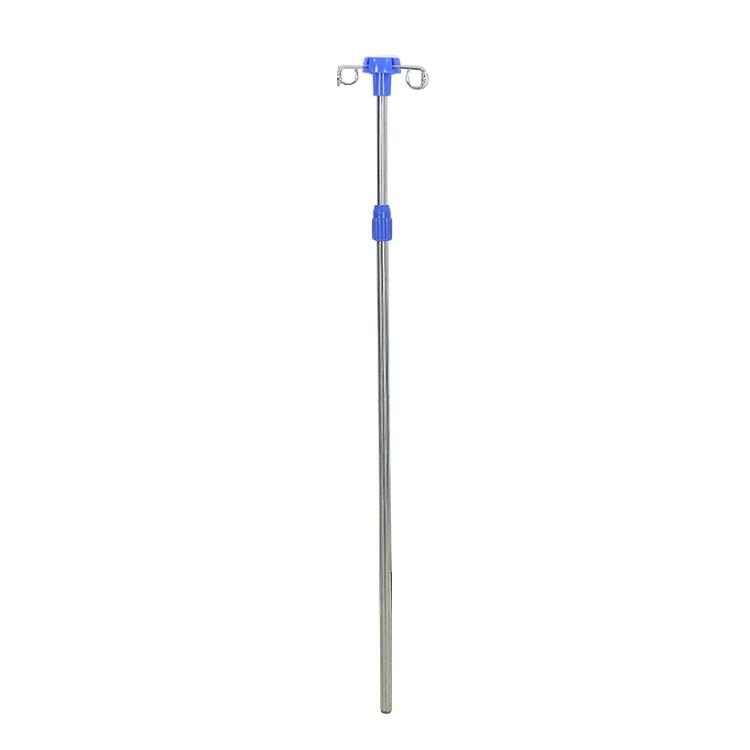

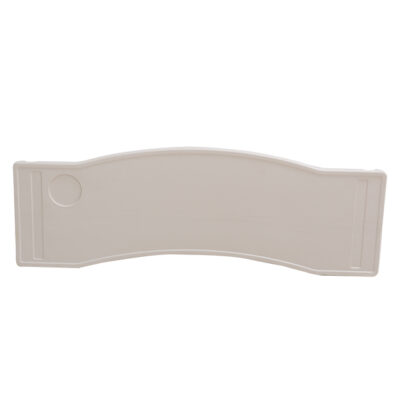

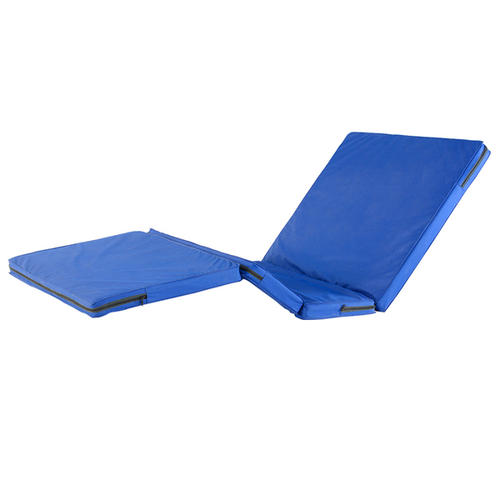

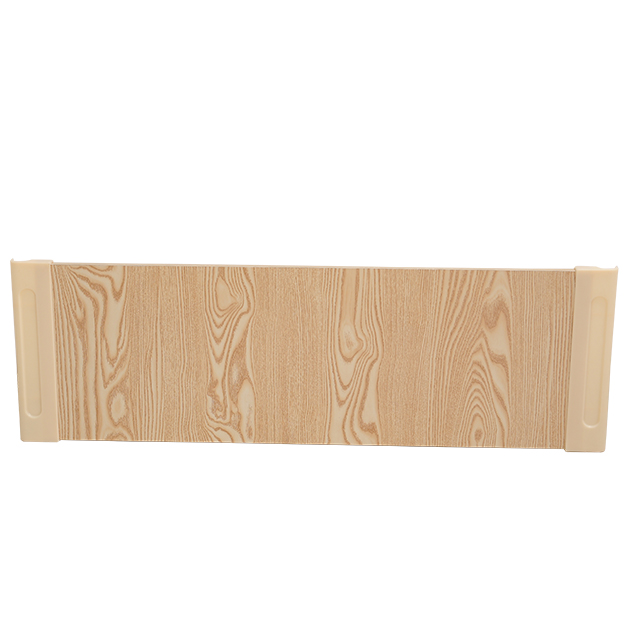

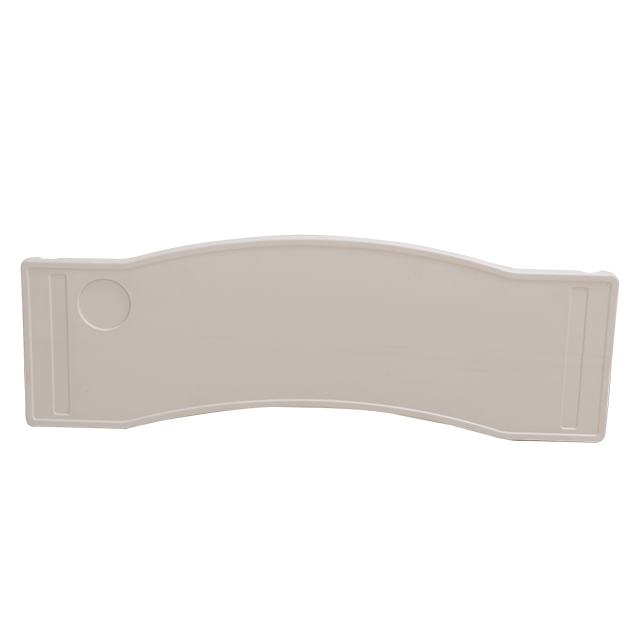

| Other Accessories | Stainless steel IV rod, mattresses (various thicknesses), wooden or ABS overbed table. |
